Camden
Camden CX-EPD-1299L

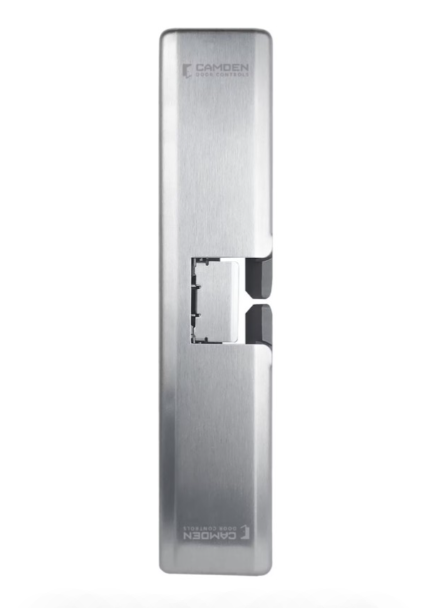

CAMDEN CX-EPD-1299L: Surface-Mount RIM Electric Strike with Preload
Checking current supplier availability…
USD · tax, shipping and installation are additional.
Ask about this model ↗Stock can change before fulfillment. Product selection and an equipment list do not reserve inventory.
Listed specifications.
These details come from the catalog description. Missing information requires confirmation for your exact variant.
- Model
- CX-EPD-1299L
- Brand
- Camden
- Category
- Access control / Rim strikes
Build a system that fits.
Equipment planning checklist →Before ordering, confirm recorder support, power requirements, mounting and network capacity for your exact equipment. A shared brand or camera shape does not establish compatibility.
Buying guides & official Uniview resources ↗Have existing equipment? Send its model numbers and your project ZIP code so we can help review the fit.
Call Lennox: 918-791-1815 ↗Supplier-listed features.
- Low-profile 1/2-inch surface-mount RIM electric strike
- Patented design operates under up to 15 lb of preload pressure
- BHMA/ANSI A156.31 Grade 1 certified
- UL-verified static strength of 1,500 lb
- 70 ft-lb dynamic-strength rating
- Selectable 12 or 24V AC/DC power
- Factory tested to 1,000,000 operating cycles
- 1/8-inch and 1/4-inch spacer plates included
- Model: CX-EPD1299L
- Latch projection: 1/2 inch; accommodates up to 3/4 inch with included spacer plates
- Voltage: 12/24V AC/DC
- Current draw: 560mA at 12V DC; 280mA at 24V DC
- Static strength: 1,500 lb, UL verified
- Dynamic strength: 70 ft-lb
- Preload capacity: Up to 15 lb
- Endurance: 1,000,000 cycles factory tested; 500,000 cycles UL verified
- Latch monitor: SPDT, 100mA at 24V DC, resistive
- Dimensions: 9-3/16 inches high × 1-7/8 inches wide × 9/16 inch deep
Listed by PAM for this product. Confirm requirements and compatibility for your exact configuration.
